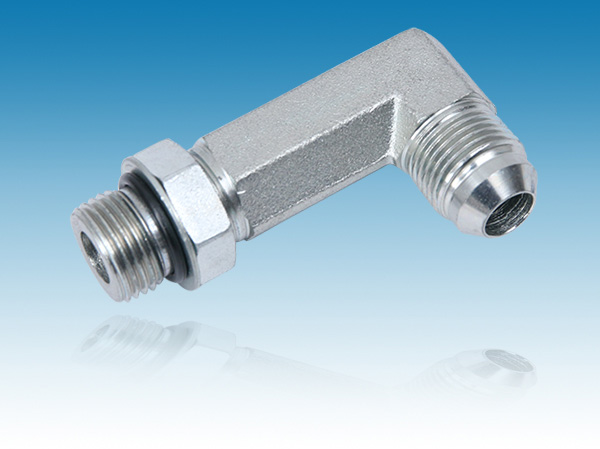

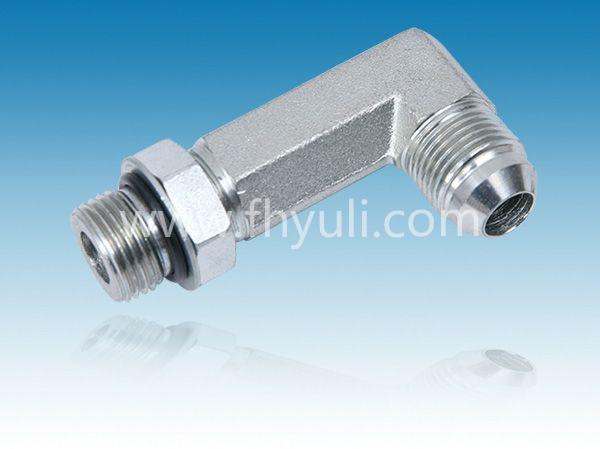

【產品名稱】 美制JIC螺紋37°加長直角接頭 6801LL系列
【所屬分類】 美制JIC螺紋37°接頭 【產品型號】 6801LL 【產品品牌】 寧吉羽立 NJ 【生產廠家】 寧波市寧吉羽立流體設備有限公司
產品詳情
| 品牌： | NJ |
| 型號： | 6801LL |
| 材質： | 碳鋼 |
| 規格： | 90度接頭 |
| 加工定制 | 是 |
| 適用范圍： | 機械設備 |
| 螺紋類型： | 直螺紋 |
| 鏈接方式 | 螺紋 |
| Product ID | Description | TUBE O.D. | B1 SAE 37 | B2 SAE ORB | B1 DRILL | B2 DRILL | M LGTH | M7 LGTH | C HEX | Y FLATS |
| 6801-LL-04-04-NWO-FG | 04MJ-04MAORB 90° Elb X-Long Forg | 1/4 | 7/16-20 | 7/16-20 | 0.172 | 0.172 | 0.89 | 1.73 | 0.563 | 0.438 |
| 6801-LL-04-06-NWO-FG | MJ-MB 90° X-L | - | - | - | - | - | - | - | - | - |
| 6801-LL-06-06-NWO-FG | 06MJ-06MAORB 90° Elb X-Long Forg | 3/8 | 9/16-18 | 9/16-18 | 0.297 | 0.297 | 1.06 | 2.08 | 0.688 | 0.562 |
| 6801-LL-06-08-NWO-FG | 06MJ-08MAORB 90° Elb X-Long Forg | 3/8 | 9/16-18 | 3/4-16 | 0.297 | 0.391 | 1.14 | 2.48 | 0.875 | 0.750 |
| 6801-LL-08-06-NWO-FG | MJ-MB 90° X-LON | 1/2 | 3/4-16 | 9/16-18 | 0.391 | 0.297 | 1.25 | 2.35 | 0.688 | 0.750 |
| 6801-LL-08-08-NWO-FG | 08MJ-08MAORB 90° Elb X-Long Forg | 1/2 | 3/4-16 | 3/4-16 | 0.391 | 0.391 | 1.25 | 2.48 | 0.875 | 0.750 |
| 6801-LL-08-10-NWO-FG | 08MJ-10MAORB 90° Elb X-Long Forg | 1/2 | 3/4-16 | 7/8-14 | 0.391 | 0.484 | 1.33 | 2.89 | 1.000 | 0.875 |
| 6801-LL-10-08-NWO-FG | 10MJ-08MAORB 90° Elb X-Long Forg | 5/8 | 7/8-14 | 3/4-16 | 0.484 | 0.391 | 1.45 | 2.73 | 0.875 | 0.875 |
| 6801-LL-10-10-NWO-FG | 10MJ-10MAORB 90° Elb X-Long Forg | 5/8 | 7/8-14 | 7/8-14 | 0.484 | 0.484 | 1.45 | 2.89 | 1.000 | 0.875 |
| 6801-LL-12-12-NWO-FG | 12MJ-12MAORB 90° Elb X-Long Forg | 3/4 | 1-1/16-12 | 1-1/16-12 | 0.609 | 0.609 | 1.66 | 3.34 | 1.250 | 1.062 |
| 6801-LL-12-16-NWO-FG | 12MJ-16MAORB 90° Elb X-Long Forg | 3/4 | 1-1/16-12 | 1-5/16-12 | 0.609 | 0.844 | 1.76 | 3.72 | 1.500 | 1.312 |
| 6801-LL-16-12-NWO-FG | 16MJ-12MAORB 90° Elb X-Long Forg | 1 | 1-5/16-12 | 1-1/16-12 | 0.844 | 0.609 | 1.81 | 3.72 | 1.250 | 1.312 |
| 6801-LL-16-16-NWO-FG | 16MJ-16MAORB 90° Elb X-Long Forg | 1 | 1-5/16-12 | 1-5/16-12 | 0.844 | 0.844 | 1.81 | 3.72 | 1.500 | 1.312 |
| 6801-LL-20-20-NWO-FG | 20MJ-20MAORB 90° Elb X-Long Forg | 1-1/4 | 1-5/8-12 | 1-5/8-12 | 1.078 | 1.078 | 2.06 | 4.41 | 1.875 | 1.625 |
