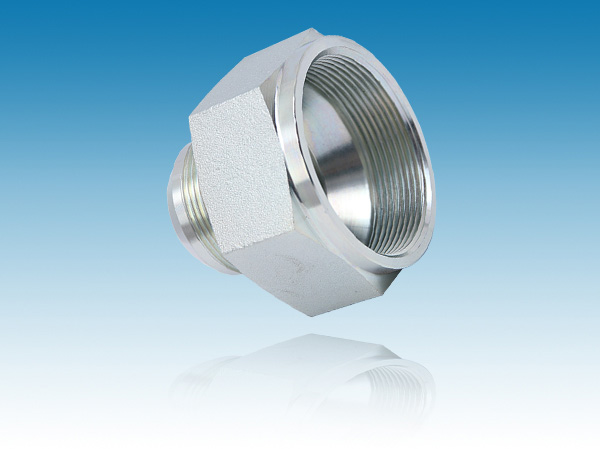

【產品名稱】 美制JIC螺紋37°直管接頭2406系列
【所屬分類】 美制JIC螺紋37°接頭 【產品型號】 2406 【產品品牌】 寧吉羽立 NJ 【生產廠家】 寧波市寧吉羽立流體設備有限公司
產品詳情
| Product ID | Description | B1 TUBE O.D. | B2 TUBE O.D. | B1 SAE 37 | B2 SAE 37 | L0 LGTH | C HEX |
| 2406- 03-04 | 03FJ-04MJ Straight Reducer | 3/16 | 1/4 | 3/8-24 | 7/16-20 | 1.11 | 0.500 |
| 2406- 04-02 | 04FJ-02MJ Straight Reducer | 1/4 | 1/8 | 7/16-20 | 5/16-24 | 1.04 | 0.563 |
| 2406- 04-03 | 04FJ-03MJ Straight Reducer | 1/4 | 3/16 | 7/16-20 | 3/8-24 | 1.07 | 0.563 |
| 2406- 04-04 | 04FJ-04MJ Straight Reducer | 1/4 | 1/4 | 7/16-20 | 7/16-20 | 1.14 | 0.563 |
| 2406- 04-05 | 04FJ-05MJ Straight Reducer | 1/4 | 5/16 | 7/16-20 | 1/2-20 | 1.14 | 0.563 |
| 2406- 04-06 | 04FJ-06MJ Straight Reducer | 1/4 | 3/8 | 7/16-20 | 9/16-18 | 1.15 | 0.625 |
| 2406- 04-08 | 04FJ-08MJ Straight Reducer | 1/4 | 1/2 | 7/16-20 | 3/4-16 | 1.25 | 0.625 |
| 2406- 05-04 | 05FJ-04MJ Straight Reducer | 5/16 | 1/4 | 1/2-20 | 7/16-20 | 1.16 | 0.625 |
| 2406- 05-06 | 05FJ-06MJ Straight Reducer | 5/16 | 3/8 | 1/2-20 | 9/16-18 | 1.17 | 0.625 |
| 2406- 05-08 | 05FJ-08MJ Straight Reducer | 5/16 | 1/2 | 1/2-20 | 3/4-16 | 1.27 | 0.812 |
| 2406- 06-02 | 06FJ-02MJ Straight Reducer | 3/8 | 1/8 | 9/16-18 | 5/16-24 | 1.07 | 0.688 |
| 2406- 06-03 | 06FJ-03MJ Straight Reducer | 3/8 | 3/16 | 9/16-18 | 3/8-24 | 1.10 | 0.688 |
| 2406- 06-04 | 06FJ-04MJ Straight Reducer | 3/8 | 1/4 | 9/16-18 | 7/16-20 | 1.17 | 0.688 |
| 2406- 06-05 | 06FJ-05MJ Straight Reducer | 3/8 | 5/16 | 9/16-18 | 1/2-20 | 1.18 | 0.688 |
| 2406- 06-06 | 06FJ-06MJ Straight Reducer | 3/8 | 3/8 | 9/16-18 | 9/16-18 | 1.18 | 0.688 |
| 2406- 06-08 | 06FJ-08MJ Straight Reducer | 3/8 | 1/2 | 9/16-18 | 3/4-16 | 1.28 | 0.812 |
| 2406- 06-10 | 06FJ-10MJ Straight Reducer | 3/8 | 5/8 | 9/16-18 | 7/8-14 | 1.38 | 0.937 |
| 2406- 08-04 | 08FJ-04MJ Straight Reducer | 1/2 | 1/4 | 3/4-16 | 7/16-20 | 1.30 | 0.875 |
| 2406- 08-05 | 08FJ-05MJ Straight Reducer | 1/2 | 5/16 | 3/4-16 | 1/2-20 | 1.30 | 0.875 |
| 2406- 08-06 | 08FJ-06MJ Straight Reducer | 1/2 | 3/8 | 3/4-16 | 9/16-18 | 1.31 | 0.875 |
| 2406- 08-08 | 08FJ-08MJ Straight Reducer | 1/2 | 1/2 | 3/4-16 | 3/4-16 | 1.41 | 0.875 |
| 2406- 08-10 | 08FJ-10MJ Straight Reducer | 1/2 | 5/8 | 3/4-16 | 7/8-14 | 1.51 | 0.937 |
| 2406- 08-12 | 08FJ-12MJ Straight Reducer | 1/2 | 3/4 | 3/4-16 | 1-1/16-12 | 1.61 | 1.125 |
| 2406- 10-04 | 10FJ-04MJ Straight Reducer | 5/8 | 1/4 | 7/8-14 | 7/16-20 | 1.39 | 1.000 |
| 2406- 10-05 | 10FJ-05MJ Straight Reducer | 5/8 | 5/8 | 7/8-14 | 1/2-20 | 1.39 | 1.000 |
| 2406- 10-06 | 10FJ-06MJ Straight Reducer | 5/8 | 3/8 | 7/8-14 | 9/16-18 | 1.40 | 1.000 |
| 2406- 10-08 | 10FJ-08MJ Straight Reducer | 5/8 | 1/2 | 7/8-14 | 3/4-16 | 1.50 | 1.000 |
| 2406- 10-12 | 10FJ-12MJ Straight Reducer | 5/8 | 3/4 | 7/8-14 | 1-1/16-12 | 1.71 | 1.125 |
| 2406- 10-16 | 10FJ-16MJ Straight Reducer | 5/8 | 1 | 7/8-14 | 1-5/16-12 | 1.76 | 1.375 |
| 2406- 12-04 | 12FJ-04MJ Straight Reducer | 3/4 | 1/4 | 1-1/16-12 | 7/16-20 | 1.46 | 1.250 |
| 2406- 12-06 | 12FJ-06MJ Straight Reducer | 3/4 | 3/8 | 1-1/16-12 | 9/16-18 | 1.46 | 1.250 |
| 2406- 12-08 | 12FJ-08MJ Straight Reducer | 3/4 | 1/2 | 1-1/16-12 | 3/4-16 | 1.56 | 1.250 |
| 2406- 12-10 | 12FJ-10MJ Straight Reducer | 3/4 | 5/8 | 1-1/16-12 | 7/8-14 | 1.66 | 1.250 |
| 2406- 12-12 | 12FJ-12MJ Straight Reducer | 3/4 | 3/4 | 1-1/16-12 | 1-1/16-12 | 1.77 | 1.250 |
| 2406- 12-16 | 12FJ-16MJ Straight Reducer | 3/4 | 1 | 1-1/16-12 | 1-5/16-12 | 1.82 | 1.375 |
| 2406- 14-04 | 14FJ-04MJ Straight Reducer | 7/8 | 1/4 | 1-3/16-12 | 7/16-20 | 1.52 | 1.375 |
| 2406- 14-06 | 14FJ-06MJ Straight Reducer | 7/8 | 3/8 | 1-3/16-12 | 9/16-18 | 1.53 | 1.375 |
| 2406- 14-08 | 14FJ-08MJ Straight Reducer | 7/8 | 1/2 | 1-3/16-12 | 3/4-16 | 1.63 | 1.375 |
| 2406- 14-10 | 14FJ-10MJ Straight Reducer | 7/8 | 5/8 | 1-3/16-12 | 7/8-14 | 1.73 | 1.375 |
| 2406- 14-12 | 14FJ-12MJ Straight Reducer | 7/8 | 3/4 | 1-3/16-12 | 1-1/16-12 | 1.83 | 1.375 |
| 2406- 14-16 | 14FJ-16MJ Straight Reducer | 7/8 | 1 | 1-3/16-12 | 1-5/16-12 | 1.88 | 1.375 |
| 2406- 16-04 | 16FJ-04MJ Straight Reducer | 1 | 1/4 | 1-5/16-12 | 7/16-20 | 1.57 | 1.500 |
| 2406- 16-06 | 16FJ-06MJ Straight Reducer | 1 | 3/8 | 1-5/16-12 | 9/16-18 | 1.57 | 1.500 |
| 2406- 16-08 | 16FJ-08MJ Straight Reducer | 1 | 1/2 | 1-5/16-12 | 3/4-16 | 1.67 | 1.500 |
| 2406- 16-10 | 16FJ-10MJ Straight Reducer | 1 | 5/8 | 1-5/16-12 | 7/8-14 | 1.77 | 1.500 |
| 2406- 16-12 | 16FJ-12MJ Straight Reducer | 1 | 3/4 | 1-5/16-12 | 1-1/16-12 | 1.88 | 1.500 |
| 2406- 16-14 | 16FJ-14MJ Straight Reducer | 1 | 7/8 | 1-5/16-12 | 1-3/16-12 | 1.91 | 1.5 |
| 2406- 16-20 | 16FJ-20MJ Straight Reducer | 1 | 1-1/4 | 1-5/16-12 | 1-5/8-12 | 1.97 | 1.688 |
| 2406- 16-24 | 16FJ-24MJ Straight Reducer | 1 | 1-1/2 | 1-5/16-12 | 1-7/8-12 | 2.10 | 2.000 |
| 2406- 20-06 | 20FJ-06MJ Straight Reducer | 1-1/4 | 3/8 | 1-5/8-12 | 9/16-18 | 1.67 | 2.000 |
| 2406- 20-08 | 20FJ-08MJ Straight Reducer | 1-1/4 | 1/2 | 1-5/8-12 | 3/4-16 | 1.72 | 2.000 |
| 2406- 20-10 | 20FJ-10MJ Straight Reducer | 1-1/4 | 5/8 | 1-5/8-12 | 7/8-14 | 1.82 | 2.000 |
| 2406- 20-12 | 20FJ-12MJ Straight Reducer | 1-1/4 | 3/4 | 1-5/8-12 | 1-1/16-12 | 1.93 | 2.000 |
| 2406- 20-14 | 20FJ-14MJ Straight Reducer | 1-1/4 | 7/8 | 1-5/8-12 | 1-3/16-12 | 1.95 | 2.000 |
| 2406- 20-16 | 20FJ-16MJ Straight Reducer | 1-1/4 | 1 | 1-5/8-12 | 1-5/16-12 | 1.97 | 2.000 |
| 2406- 20-24 | 20FJ-24MJ Straight Reducer | 1-1/4 | 1-1/2 | 1-5/8-12 | 1-7/8-12 | 2.15 | 2.000 |
| 2406- 24-08 | 24FJ-08MJ Straight Reducer | 1-1/2 | 1/2 | 1-7/8-12 | 3/4-16 | 1.85 | 2.250 |
| 2406- 24-10 | 24FJ-10MJ Straight Reducer | 1-1/2 | 5/8 | 1-7/8-12 | 7/8-14 | 1.95 | 2.250 |
| 2406- 24-12 | 24FJ-12MJ Straight Reducer | 1-1/2 | 3/4 | 1-7/8-12 | 1-1/16-12 | 2.05 | 2.250 |
| 2406- 24-14 | 24FJ-14MJ Straight Reducer | 1-1/2 | 7/8 | 1-7/8-12 | 1-3/16-12 | 2.08 | 2.250 |
| 2406- 24-16 | 24FJ-16MJ Straight Reducer | 1-1/2 | 1 | 1-7/8-12 | 1-5/16-12 | 2.10 | 2.250 |
| 2406- 24-20 | 24FJ-20MJ Straight Reducer | 1-1/2 | 1-1/4 | 1-7/8-12 | 1-5/8-12 | 2.15 | 2.250 |
| 2406- 24-32 | 24FJ-32MJ Straight Reducer | 1-1/2 | 2 | 1-7/8-12 | 2-1/2-12 | 2.52 | 2.625 |
| 2406- 32-08 | 32FJ-08MJ Straight Reducer | 2 | 1/2 | 2-1/2-12 | 3/4-16 | 2.1 | 2.875 |
| 2406- 32-12 | 32FJ-12MJ Straight Reducer | 2 | 3/4 | 2-1/2-12 | 1-1/16-12 | 2.30 | 2.875 |
| 2406- 32-16 | 32FJ-16MJ Straight Reducer | 2 | 1 | 2-1/2-12 | 1-5/16-12 | 2.35 | 2.875 |
| 2406- 32-20 | 32FJ-20MJ Straight Reducer | 2 | 1-1/4 | 2-1/2-12 | 1-5/8-12 | 2.40 | 2.875 |
| 2406- 32-24 | 32FJ-24MJ Straight Reducer | 2 | 1-1/2 | 2-1/2-12 | 1-7/8-12 | 2.52 | 2.875 |
